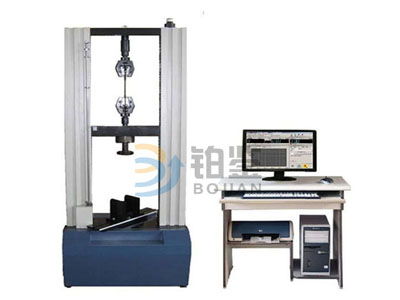

Product name：BJMW-W50 microcomputer control panel universal testing machine.
Product model：BJMW-W50
Product range：
Immediate consultation
Online Message
BJMW - W50 man-made board microcomputer control universal testing machine is used for a variety of man-made board production enterprises and the quality department, can complete the plywood, particle board, medium density fiberboard (MDF) and a variety of mechanical properties test.
GB / T 16491-2008 "electronic universal testing machine"
GB/T12160-2002 regulations for extensometer of uniaxial test.
GB/T16825-1997 "test of tension test machine"
GB/T17657-2013 test method for physical and chemical properties of wood-based panels and decorative wood-based panels.
BJMW-W10 | BJMW-W20 | BJMW-W50 | |
Max testing force | 10KN | 20KN | 50KN |
range of measurement | The maximum test force2％～100％（optional0.4%-100%） | ||
est accuracy | Better than the values±1％（±0.5%为Special Feature） | ||
Test Speed | 0.01-300mm/min Stepless speed regulation within range | ||
Speed Accuracy | precede±1％ | ||
Stretch space | 600mm(The biggest to1200mm) | ||
Dimensions | 660x420 x1700mm | 660 x420 x1700mm | 840 x600 x1850mm |
Weight of this test machine | 500kg | 500kg | 650kg |
