The hydraulic universal testing machine adopts pillar structure, the use of hydraulic load, the computer shows the test result, convenient operation, accurate and reliable test readings of general steel and other metal materials can do tensile, compression, bending and shear test, can also do general materials, such as plastic, cement and concrete compression and bending test.

The testing machine adopts the hydraulic cylinder, and the power and transmission device of adjusting test space is installed at the bottom of the test machine, and the transmission is stable.The upper and lower clamps are fully open structure, automatic hydraulic clamping system, convenient for clamping, good stability.

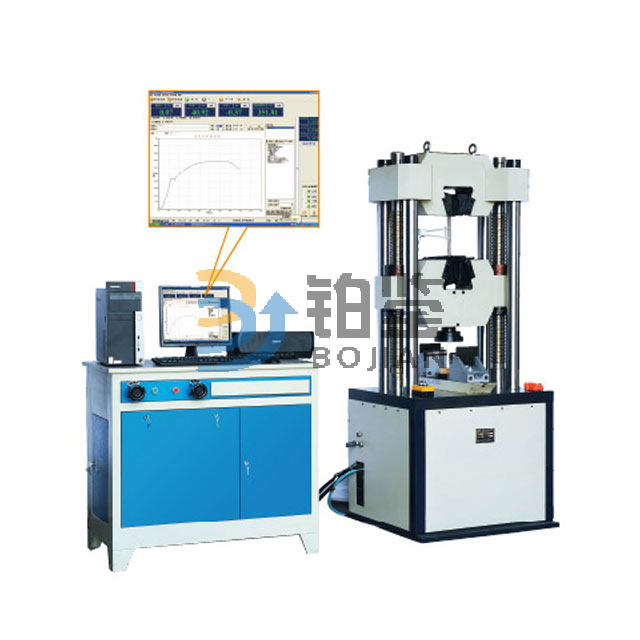

BJWA - W600B microcomputer-controlled electro-hydraulic servo hydraulic universal testing machine implement GB/T3159-2008 hydraulic universal testing machine, GB/T228-2002 "metallic materials tensile testing at", GB/T 16826-2008 "universal testing machine electro-hydraulic type", GB/T 7314-2005 "metallic materials at room temperature compression test method", GB/T 232-2010 "metal material bending test method" and so on.

1. Maximum test force kN: 600.

2. Measuring range kN: 2% to 100%FS (12-600kn)

3. The relative error of the test force indicator: the value of less than or less than 1%.

4. Test force resolution: 0.01kN.

5. Displacement measurement resolution: 0.01.

6. Deformation measurement accuracy mm: 0.01.

7. Maximum tensile test space mm: 600.

8. Maximum compression space mm: 550.

9. Hydraulic universal testing machine piston stroke mm: 200.

10, round sample jaw clamping diameter mm: Φ 13 - Φ 40

11. Flat sample clamping thickness mm: 0-40.

12. The maximum clamping width of the flat sample is mm: 75.

13. Hydraulic universal testing machine pressure plate size mm: 160*160.

14. Bending test the maximum distance between two points: 350.

15. Stretch space two pillar distance mm: 465.

16. Bending roll width mm: 140.

, bending roll diameter of 17 mm: Φ 40

18. Maximum bending mm: 150.

19. Shear specimen diameter mm: 10.

20. The maximum moving speed of piston is mm/min: about 80.

21. Oil pump motor power kw: 1.1.

22. The power kw of the beam up and down is kw: 0.75.

23. Clamping mode: automatic/manual tightening.

24. Hydraulic universal testing machine main body size mm: about 800 by 580 * 2100.

25. The measuring cabinet's external dimension is mm: about 1120 * 700 * 950.

26. Machine weight kg: about 2350.

1, room temperature is 10 ℃ to 35 ℃ range;The relative humidity is not greater than 80%;

2. No vibration, no corrosive medium and clean environment without strong electromagnetic interference;

3. The fluctuation range of the power supply voltage shall be within 10% of the rated voltage;

4. Install correctly on solid foundation.
