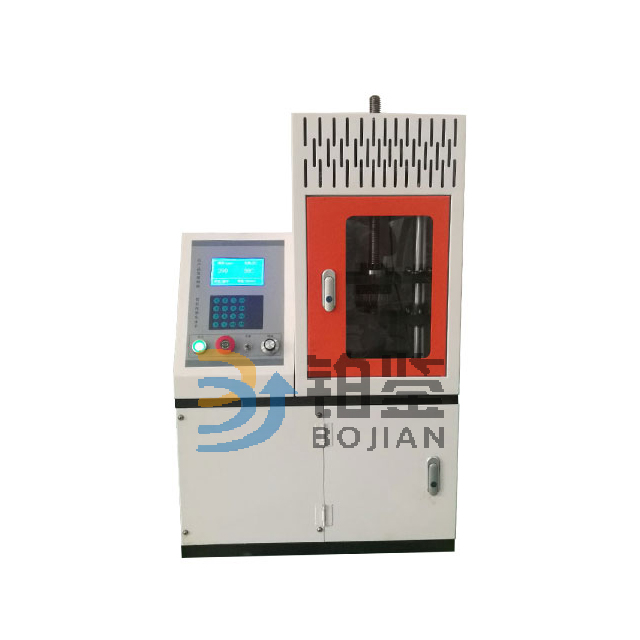

Product name：Mechanical spring tension fatigue testing machine
Product model：
Product range：Host machine (including mechanical product, optic) : 1 set + eccentric, transmission rod: 1 set + bearing (including bearing) : 1 set + MCU controller: 1 set + machine shell, independent control cabinet: 1 set + 1 + ac servo precision ac servo motor drive
Immediate consultation
Online Message
Mechanical spring tension and compression fatigue testing machine main spring reciprocating frequency fatigue test, can also be used for all kinds of cylindrical spiral spring, gas spring, elastomer, elastic element and other parts of the fatigue life test
Product model bjtpl-2kn.
Maximum test force (N) 2000.
Maximum length of specimen (mm) 220.
Φ 100 specimens maximum overall diameter (mm)
Spring tester adjustable frequency: 0 ~ 10Hz.
Maximum amplitude (mm) 80.
Count capacity: 999999999.
Count stop accuracy: 1.
Test station single position: according to the spring size and force value.
Test machine main size (mm) weight (kg) : about 600*450*900, 170kg.
Control cabinet size (mm) weight (kg) : about 400*320*640, 20kg.
Power supply: AC 220V plus or minus 10% 50Hz.
Motor power: 1.2kw.
1, room temperature is 10 ℃ to 35 ℃ range;The relative humidity is not greater than 80%;
2. No vibration, no corrosive medium and clean environment without strong electromagnetic interference;
3. The fluctuation range of the power supply voltage shall be within 10% of the rated voltage;
4. Install correctly on solid foundation.
