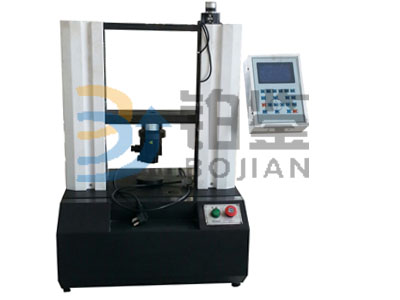

BJQY -s to ore pellets pressure testing machine, chemical pellets (particles), mechanical properties test and analysis on the type of materials such as coal research, meet the GB/T14201-93 iron ore pellets compressive strength measuring method "requirement, used to measure molten iron ore pellet burning compressive strength.The machine can also be used for testing and analyzing other metals, non-metal and composite materials, and it is widely used in casting, metallurgy, mining and other industries.

The pellet pressure tester can automatically calculate the maximum test force, breaking force and automatic test return data, and the test results are automatically printed. The test machine uses a micro DC servo motor as a power source. The liquid crystal single chip microcomputer displays the test data and the test state in real time. The control of the test process is realized by the automatic control of the single chip microcomputer.

Maximum test force of the sensor: 50000N

Model: BJQY-S

Precise measurement range: 1% ~ 100%

The accuracy of test force measurement: + 1%

Displacement speed control: 1 ~ 300mm/min adjustment.

Test space for pellet pressure testing machine: 0 ~ 300mm

Test space width: 380mm

Power supply power: 750W, 220V, 50Hz

Overall size of the machine: 560 x 420 x 1580mm
