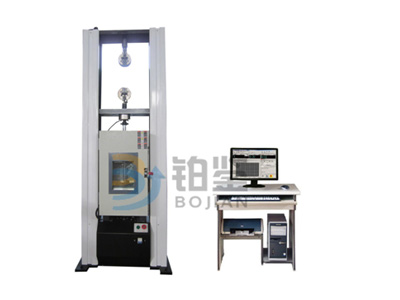

        The BJGDD-W5KN microcomputer controlled high and low temperature universal testing machine is a new generation of double space microcomputer control test machine designed specially for universities and scientific research institutes. The design of the host and auxiliary test machine to draw lessons from the foreign advanced technology, beautiful appearance, convenient operation, stable and reliable performance.

The electronic universal testing machine fully meet the national standard GB/T228-2002 "tensile test method of metallic materials at room temperature and" GB5237.6-2004 "Aluminum Alloy building material insulation material" requirements, at the same time according to the GB, ISO, JIS, ASTM, DIN and provide users with a variety of standard test and data processing, and has good scalability.

The high and low temperature microcomputer control electronic universal testing machine is widely used in material inspection building materials, aerospace, machinery manufacturing, wire and cable, rubber plastic, textile, home appliance industry analysis, is the ideal test equipment, scientific research institutions, universities, industrial and mining enterprises, and technical supervision and inspection departments of arbitration. It has a very broad application prospect.

1. styles: microcomputer control and door structure

2. maximum test force: 5000N

3. test force division: stepless speed regulation, x 1, x 2, x 5, x 10 four gear

4. the measuring range of the electronic universal testing machine: the range 0.4%-100%;

6. displacement resolution: 0.01mm

Accuracy of 7. displacement measurement: over 0.5%

8. displacement speed control range: 0.001mm/min ~ 500mm/min

9. displacement speed control precision: 0.5%;

10. high temperature electronic universal testing machine level: level 0.5

11. beam maximum stroke: 800mm (customizable)

12. effective test space width: 500mm (customizable)

13. control range of constant force, constant deformation and constant displacement: 0.5% - 100%FS

1、室温10℃-35℃范围内;相对湿度不大于80%；

2、周围无振动、无腐蚀性介质和无较强电磁场干扰的清洁环境中；

3、电源电压的波动范围应在额定电压的土10%以内；

4、在稳固的基础上正确安装。
