Welcome to Ji'nan Bojian Testing Machine Co., Ltd.

It is mainly used for tensile shear strength test of adhesives. In addition, a wide variety of test accessories can also be used to test the tensile, compression, bending, shearing, tearing, stripping, compression and folding resistance of metal, nonmetal, building materials and thermal insulation materials. It has wide application prospects in mechanical properties test of metals, nonmetals, composite materials and products.

GB/T7124-2008 "determination of tensile shear strength of adhesives" (rigid materials for rigid materials).

GB/T16491-2008 "electronic universal testing machine"

GB/T12160-2002 regulations for extensometer of uniaxial test.

GB/T16825-1997 "test of tension test machine"

GB/T2611-2007 "general technical requirements for testing machines"

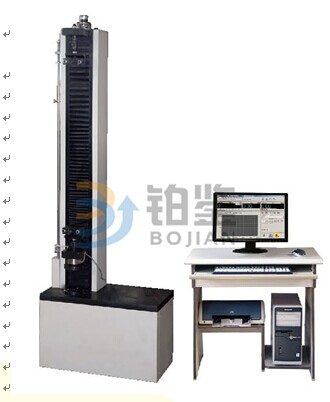

Model BJDL-S2000N

Maximum test force 2000N

The accuracy of test force is 1%

Minimum test force reading 0.1N

Cross beam moving speed 1~500mm/min, stepless speed regulation

Displacement accuracy of + 1%

Displacement measurement stroke 600mm

Displacement speed control precision of + 1%

Test machine level 1 level

LCD content test force, displacement, peak value, running state, running speed and so on.

The weight of the host is about 120kg

The size of the test machine is about 520 x 280 x 1580 mm

The appearance should meet the requirements of GB/T2611

Compliance with standard requirements

Protection function test machine has overload protection function

Power supply 220V, 50Hz
