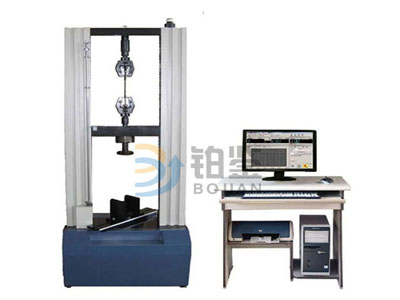

The anti compression test machine of BJZS-W2KN paper plasterboard adopts the integrated structure of brand high performance motor and its driving system to drive the synchronous belt deceleration system. After deceleration, it can drive the screw pair to be loaded. The electrical part consists of load measurement system and deformation measurement system. All the control parameters and measurement results can be displayed on a large screen LCD in real time. It also has the function of limit protection, overload protection and so on.

This machine is suitable for testing the hardness of the end of the paper plasterboard and the determination of the edge hardness and the determination of the shear properties. In addition, a simple configuration can also be used to test the tensile and compression properties of metal, non-metal and composite materials. It has the necessary functions such as the curve display, the query, and so on.

GB/T9775-2008 "paper plaster board"

GB/T 16491-2008 "electronic universal testing machine"

GB/T12160-2002 "requirements for extensometer for uniaxial tests"

GB/T16825-1997 test of tensile testing machine is checked and checked.

Main technical parameters of plaster board bending and compression testing machine

1, style: double column gate

2. Test force: 2000N

3. Range: 1%-100%;

4. The accuracy of test force; 1%

5. The accuracy of the test force; 0.1N

6. Test machine level: Level 1

7. Displacement resolution: 0.01mm;

8. The accuracy of displacement measurement: 0.5%;

9, stretching stroke: 650mm (customized according to customer needs)

10, compression stroke: 650mm (customized according to customer needs)

11. Displacement speed control range: 1mm/min ~ 300mm/min

12. The precision of the displacement speed control: 0.5%;

Size 13, test machine: About 720mm "500mm" 1780mm

14, test machine weight: about 450KG

15, appearance: should comply with GB/T2611 requirements.

16, complete set: meet the standard requirements

17. Protection function: the tester has overload protection function.

18. Power supply: 220V, 50Hz
