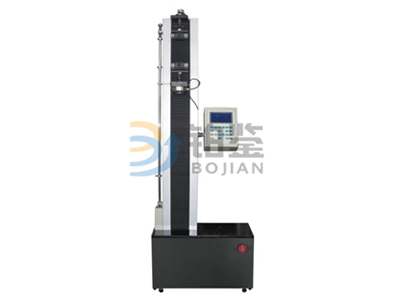

The digital display fire door compression-proof testing machine is designed for fire door manufacturing enterprise certification.Fully meet the technical requirements of GB/ t5486-2008.The design of the testing machine and auxiliary equipment integrates the advanced technology of jinan platinum testing technology co., LTD., with beautiful appearance, convenient operation and reliable performance.System by platinum as a controller, the rotational speed control system control servo motor, after reduction system slowdown by precision ball screw pair with beam rising, falling, low noise, high efficiency and has a wide speed range.This machine is widely used in metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments of the ideal test equipment.

Maximum test force: 10KN

Operation mode: all Chinese menu operation

Measurement range: 1% - 100% points of maximum test force

Precision grade of test machine: 1

Accuracy of test force: over 1%

Digital display type fire door compression and bending test machine test force: minimum resolution 0.1N

Displacement measurement: the resolution is 0.01mm

Distortion accuracy: superior to 1%

Speed range: 1-500mm/min

LCD contents: test force, displacement, peak value, running state, running speed and so on.

Stepless speed regulation: DC servo motor and control system are adopted.

Test space adjustment mechanism: servo motor, synchronous belt drive.

Test trip: 600mm (customized according to customer needs)

Stretching space: 600mm (customized according to customer needs)

Compressed space: 600mm (customized according to customer needs)

Motor power: 0.75KW

Appearance of digital display fire door compression and bending tester: conform to national GB/T2611 standard

Host size: about 540*280*1700mm

Complete set: meet the standard requirements

Test protection function: overload protection

Safety protection device: limit switch

Power supply: 200V 50Hz

Digital display type fire door compression and bending test machine weight: about 150Kg
