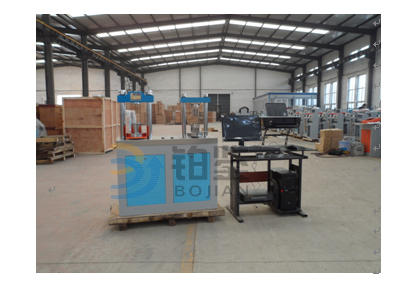

Microcomputer control compressive flexural testing machine is mainly used for concrete, steel tubes, cement products, hollow bricks, refractory materials, engineering materials, stone, rubber bearing construction materials such as compressive strength test.It is a necessary equipment for the laboratory of highway, railway, bridge, building, building materials and colleges and universities.This tester is used to conform to JB/T8763-2001 electro-hydraulic type cement pressure testing machine technology conditions, GB/T17671-1999 cement sand on the compressive strength, flexural test standard, adopt double location test space, has used a dual-use, save a space, the advantages of simple operation.

The compression-resistance folding machine adopts hydraulic loading, electronic measurement, load digital display, loading speed display, maximum load maintenance, and overload protection and power failure data retention.

B/T8763-2001 electrohydraulic cement pressure test machine

1. The microcomputer controlled compression and bending test machine adopts high precision sensor and digital display instrument, which can store, check and print test results.

2, the machine uses rotary screw to adjust the compression space, greatly speeding up the test progress.

3, the anti folding apparatus can be added, and the bending resistance test can be carried out.

4, the machine does not need to debug, smoothly landing, refueling, electricity can work.

5, the microcomputer controlled compression and bending tester is easy to calibrate, and the user can calibrate it according to the instruction manual.

6. The machine adopts high precision sensor and computer control, and can automatically store, check and print test reports and print curves.

7. The compression and bending test machine adjusts the compression space by using the rotating screw, which greatly accelerates the test progress.

8, the machine can design its own report according to the requirements of the unit.

9, the machine can realize manual and automatic dual control system.

Maximum test force                                                                                                          300KN (compression) /10kN (folding)

Relative error of test force indicator.                               Plus or minus 1% or less
Loading rate                                                                     0.3kn /S ~ 10KN/S (anti-pressure), 50N/ S (anti-folding)
The loading speed error.                                                  Plus or minus 5%
Pressure plate size                                                            · 155mm (anti-pressure), 80X150mm(anti-folding)
Piston maximum stroke                                                    80 mm
The piston diameter                                                          · 130mm (anti-pressure), 60mm(anti-fold)
The highest oil pressure.                                                   25 mpa
Oil pump rated flow                                                          1.52 L/min
The motor power                                                               0.75 kW
The host ㎜ shape size                                                       About 820 * 450 * 1300 mm
The host weight                                                                500 kg
