In material notch impact test, the v-notch (or u-shaped notch) processing is the key to test whether the problem, the broaching machine to provide you with an ideal, can absolutely guarantee one hundred percent qualified V (or 2 mm and 5 mm, u-shaped) gap of special equipment.Based on the actual needs of the current domestic users, this broaching machine is a new product developed in the field of domestic and international development.

GB/ t3038-2002 test of pendulum impact testing machine

GB/T229 -- 2007 metal charpy notch impact test method

GB/ t18658-2002: test sample of charpy v-notch for pendulum impact testing machine

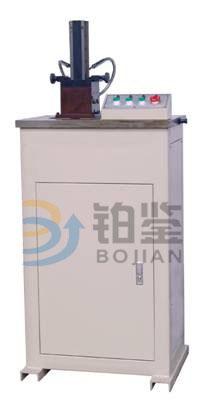

Electric broaching machine for motor drive screw way, according to user requirements and configuration V or U broach, sample gap forming in one time, one could be successfully drawn two standard sample gap, broach the use of special materials, special process precision processing and manufacturing, high hardness, good wear resistance, long service life and processing the v-notch and u-shaped notch (2 mm) can meet related national standards GB/T229-2007, due to a broaching processing forming principle, the processing of identity is wonderful, can guarantee the sample processing by the gap one hundred percent qualified.

Working method: motor loading.

Processing sample gap: V compliance (gb229-2007, ISO148)

U (2mm, gb229-2007)

Processing sample size: 10*10 (7.5 or 5) * 55 mm.

Draw line: 350 mm.

Pull speed: 2.5mm /min.

External ruler: 350*350*700 (length * width * height) mm.

Weight: 80 kg
