  • BjDW-300KN electronic bolt tension tester.

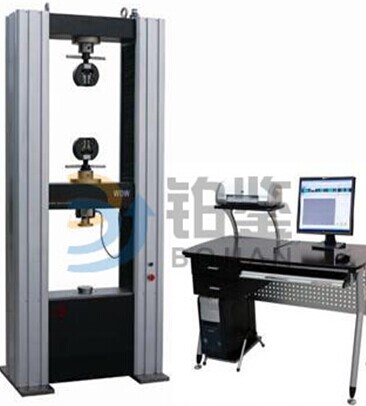

产品名称:BjDW-300KN electronic bolt tension tester.

产品型号:BJDW-300KN

产品量程:100kN/200KN/300KN

BjDW-300KN electronic bolt tension tester.立即咨询BjDW-300KN electronic bolt tension tester.在线留言

<
>

产品简介

It is mainly used to test the wedge load tension test, tension test, guarantee load test and elongation rate of bolt, screw and stud.In addition, metal materials and non-metallic materials and parts products can be subjected to tensile, compression, bending, tearing, stripping and other tests, as well as some special mechanical properties of the products.

执行标准

GB/T3098.1-2002 fasteners mechanical properties bolts, screws and studs.

GB/T228-2010 "methods for tensile testing of metallic materials at room temperature".

GB/T16825-2008 "test of static uniaxial test machine"

GB / T 16491-2008 "electronic universal testing machine"

ISO7500-1-2006 identification of static uniaxial test machine.

GB/T12160-2002 regulations for extensometer of uniaxial test.

GB/T2611-2007 "technical requirements for testing machines"


功能特点

技术参数

The maximum test power is 100kN/200KN/300KN.

Sensor: America Weishi Shiquan

Measurement range: 2%-100%;

The resolution in the test: 0.1kN

The accuracy of test force is better than that of indication value of + 1% or + 0.5%.

Test machine level: Level 1 or 0.5

Displacement resolution: 0.01mm;

The accuracy of displacement measurement: + 0.5%;

Stretching stroke: 650mm (customizable).

Pressure plate diameter: 150mm (customizable).

Speed range: 1-500mm/min or 0.01-500mm/min.

Speed accuracy: better than the value of + 0.5%.

Test machine size: 780*560*1750 mm

Test machine weight: 450Kg
