  • BJ160 Richter hardness tester

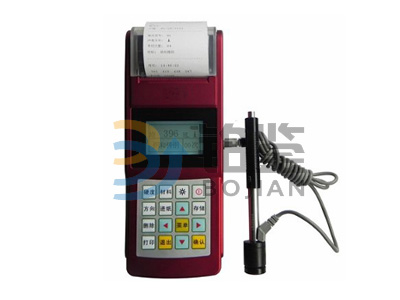

产品名称:BJ160 Richter hardness tester

产品型号:BJ160

产品量程:

BJ160 Richter hardness tester立即咨询BJ160 Richter hardness tester在线留言

<
>

产品简介

The BJ160 Richter hardness tester is a hardness measuring instrument with built-in printer, tolerance setting and many other functions. It is built with high speed thermosensitive printer to support on-site instant printing, to ensure the impartiality of measurement results and the long storage and traceability of data. All Chinese display, menu operation, simple and convenient operation. This machine can directly display all kinds of hardness values such as Richter, Brinell, Rockwell, Vivtorinox, Shaw and so on. The instrument is compact, portable and highly reliable. The hardness tester is suitable for harsh operation environment, and is resistant to vibration, impact and electromagnetic interference. The BJ160 Richter hardness tester is a hardness measuring instrument with built-in printer, tolerance setting and many other functions. It is built with high speed thermosensitive printer to support on-site instant printing, to ensure the impartiality of measurement results and the long storage and traceability of data. All Chinese display, menu operation, simple and convenient operation. This machine can directly display all kinds of hardness values such as Richter, Brinell, Rockwell, Vivtorinox, Shaw and so on. The instrument is compact, portable and highly reliable. The hardness tester is suitable for harsh operation environment, and is resistant to vibration, impact and electromagnetic interference.

执行标准

功能特点

1. according to the principle of the hardness measurement, the interface is displayed on the boot.

2. standard Rockwell hardness test block.

3. with D type impact device.

4. the mutual conversion between hardness and tensile strength;

5. it can display information such as measurement value, average value, date, direction of impact, frequency of test, testing material, hardness system and so on.

6. a main engine can be equipped with 7 different impact devices.

7. can enter the test date and code name.

8. has the function of the indication soft calibration.

9. there are charging instructions and low voltage alarm function.

10. can print any test results;

11. can automatically turn off the machine.

12. the rechargeable battery can be replaced by itself.


技术参数

Indication error + 6HLD (HLD=760)


Indicator repeatability 6HLD (HLD=760)


Recognizable impact devices D, G, C, DL, DC, D+15D, G, C, DL, DC, D+15


Measurement direction 360 degrees


Hardness system HL, HB, HRC, HRB, HV, HS, HRA, HSD


PC communications have


The diameter of the print paper is 26.7 + 0.5mm


The width of the printed paper is 56.5 + 0.5mm


Battery lithium battery (continuous working for 10 hours)


Working voltage 4.7V-6V


Rechargeable power supply 9V/600mA


Outer size 210 x 80 x 35mm


The weight is about 0.4Kg


Standard configuration main engine, D impact device, small support ring, high value standard hardness block, charger, nylon brush, printing paper.


All kinds of special supporting rings, standard hardness blocks and communication software are selected.
