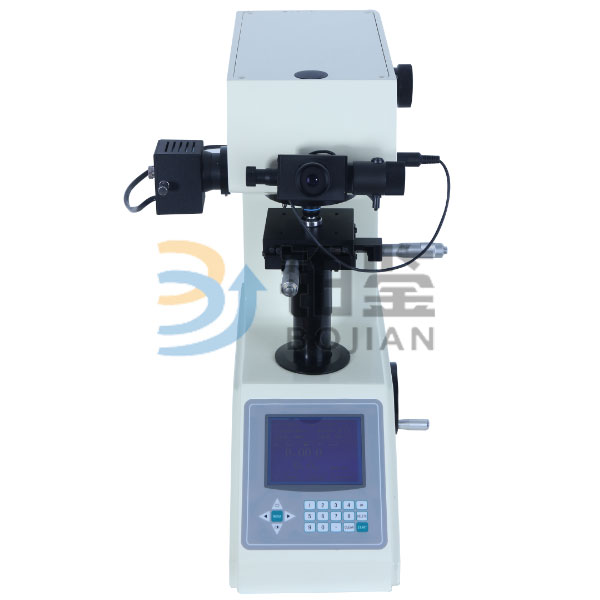

The machine has no friction spindle, high precision of test force, automatic acquisition of indentation data, high precision optical measurement system, precision test table, Chinese and English interface conversion, various hardness values conversion, RS232 data interface and computer connection, automatic test process, simple operation, no one for error, and optional nunnus pressure head for nuns. Hardness test; optional CCD camera device and image processing system;
The accuracy is in line with GB/T4340.2, ISO6507-2 and us ASTM E384.
Nitriding, ceramic, steel, nonferrous metals; thin sheet, metal sheet, electroplating, small specimen; material strength, heat treatment, carbonation layer, decarburization layer and hardened hardened layer; suitable for precision Vivtorinox measurements of parallel planes and small parts and ultra thin parts.
Hardness range: 5-3000HV
Test power: 0.09807, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807 Newton (10, 25, 50, 50, 50, 50, 25, and acrylic).
Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Magnification of measurement system: 400 times (measured), 100 times (observation)
Measurement system resolution: 0.01 microns
Measurement system measurement range: 200 microns
Precision: GB/T 4340.2-1999
The maximum height is allowed: 90 millimetres
Pressure head center to wall distance: 120 millimeter
Power: AC 220 volt, 50/60 Hertz
Shape size: 470 x 320 x 500 mm
Weight: about 40 kilos
