  • HRS-150B digital display and high Rockwell hardness tester

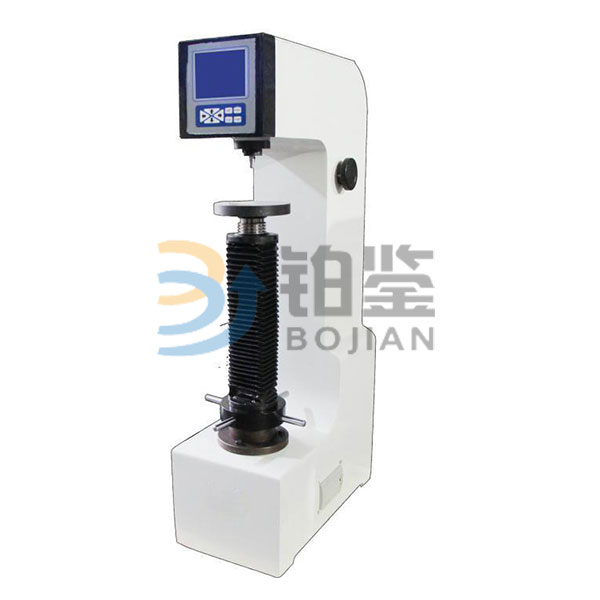

产品名称:HRS-150B digital display and high Rockwell hardness tester

产品型号:HRS-150B

产品量程:20-92HRA ,20-110HRB,20-72HRC

HRS-150B digital display and high Rockwell hardness tester立即咨询HRS-150B digital display and high Rockwell hardness tester在线留言

<
>

产品简介

HRS-150B digital display and high Rockwell hardness tester is high precision, stable performance of high and new technology products, interface menu, simple operation, intuitionistic, convenient, measuring device using grating displacement sensor and computer control, the hardness of the display on the LCD screen directly, it is an electromechanical integration of the hardness testing instrument. The structure optimization of the whole machine, heightened design and wider application scope.

执行标准

GB/T230.2

功能特点

The fuselage part of the product is formed by casting process once and has been treated for a long time. Compared with the technology of plate splicing, long-term use of variable shape is very small, and it can effectively adapt to all kinds of harsh environments.

Automobile pearl paint, high quality paint, scratch resistance, and use for many years is still bright as new;

The core parts are machined by CNC machine tools, and the accuracy and stability of the machine are greatly improved.

The heightened design is suitable for large and medium-sized parts, and the testing space can reach 400mm.

Intelligent digital display Rockwell hardness tester, besides load selection, realizes automation.

The manual operation of the manual Rockwell hardness tester is eliminated by controlling the loading, keeping and unloading of the test force through the motor.

The LCD display interface is used to display and set up the current test ruler, test force, test pressure head, load holding time, hardness conversion scale, etc.

The built-in test software can compensate the machine for 3HR, which makes the adjustment of the trace deviation no longer open the machine cover plate for mechanical adjustment, and reduces the cost of service and after-sales service.

According to the Rockwell hardness value, it can be automatically transformed into the hardness value of other rulers, so it is no longer necessary to waste time and energy to query complicated table of hardness.

A built-in printer to read the results of the test. It realizes automatic operation and eliminates manual operation and reading errors.


技术参数

Measurement range: 20-92HRA, 20-110HRB, 20-72HRC;

Test force: 588.4, 980.7, 1471N (60, 100, 150kgf);

The maximum height of the sample is allowed: 400mm;

The distance between the center of the press and the wall of the wall: 165mm;

Hardness resolution: 0.1HR;

Shape size: 548*326*1025mm;

Weight: 140Kg
