  • compression testing machine

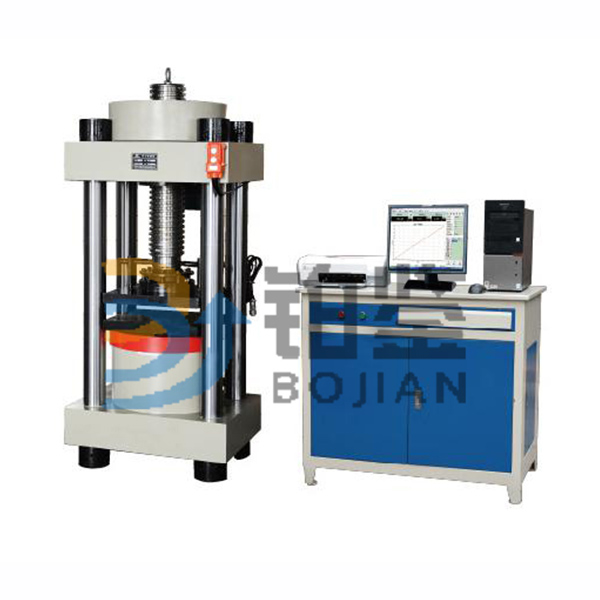

产品名称:compression testing machine

产品型号:BJAW-D2000KN

产品量程:

compression testing machine立即咨询compression testing machine在线留言

<
>

产品简介

The test machine is used to measure the compressive strength of brick, stone, concrete and other building materials.

The microcomputer controlled servo pressure testing machine is the electric hydraulic loading, the sensor measuring force, the digital display force value, the printer printing force value data, and the conversion compressive strength.This machine meet the national standard "standard of ordinary concrete mechanical properties experimental method", should be manual control loading speed, and with loading speed indicating device, peak, overload protection function, is a construction, building materials, highway Bridges and other units of the necessary test equipment.


执行标准

1. Maximum test force of microcomputer controlled servo pressure testing machine: 2000KN.

2. Precision of indicator: less than or less than 1% (up to + + 0.5%)

3. Compression space: 0-340mm.

4, the pressure plate size: Φ 300 mm (can be customized according to your requirement)

5. Piston stroke: 50mm.

6. Column spacing: 260mm.

7. Loading rate: 0.1~25KN/s (digital setting)

8, microcomputer control servo type pressure testing machine working temperature: 5 ℃ to 35 ℃

9. Overload protection: overfull range 3%.

10. Main engine size: approximately 600 x 600 x 1450 (mm)

11. Oil source size: about 1070 * 650 * 1400 (mm)

12. Motor power: 0.75kw.

13. Working voltage: 380V/220V.

14 principle, microcomputer control servo type pressure testing machine, hydraulic loading, internal signal sensor, computer automatic control, the real test, according to the national standard automatic processing, automatic conversion, print output.The form can be set by itself.

15. Machine weight: about 700Kg.


功能特点

1. Maximum test force of microcomputer controlled servo pressure testing machine: 2000KN.

2. Precision of indicator: less than or less than 1% (up to + + 0.5%)

3. Compression space: 0-340mm.

4, the pressure plate size: Φ 300 mm (can be customized according to your requirement)

5. Piston stroke: 50mm.

6. Column spacing: 260mm.

7. Loading rate: 0.1~25KN/s (digital setting)

8, microcomputer control servo type pressure testing machine working temperature: 5 ℃ to 35 ℃

9. Overload protection: overfull range 3%.

10. Main engine size: approximately 600 x 600 x 1450 (mm)

11. Oil source size: about 1070 * 650 * 1400 (mm)

12. Motor power: 0.75kw.

13. Working voltage: 380V/220V.

14 principle, microcomputer control servo type pressure testing machine, hydraulic loading, internal signal sensor, computer automatic control, the real test, according to the national standard automatic processing, automatic conversion, print output.The form can be set by itself.

15. Machine weight: about 700Kg.


技术参数

1, room temperature is 10 ℃ to 35 ℃ range;The relative humidity is not greater than 80%;

2. No vibration, no corrosive medium and clean environment without strong electromagnetic interference;

3. The fluctuation range of the power supply voltage shall be within 10% of the rated voltage;

4. Install correctly on solid foundation.


下一篇:100T microcomputer controlled electro hydraulic servo hydraulic universal testing machine.
