  • Screen material wear tester.

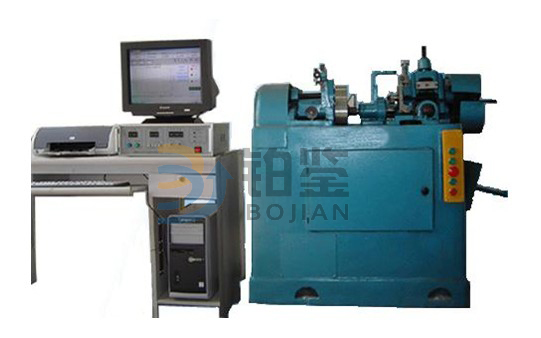

产品名称:Screen material wear tester.

产品型号:BJME-2

产品量程:2000N

Screen material wear tester.立即咨询Screen material wear tester.在线留言

<
>

产品简介

Screen explicit material abrasion tester is mainly used for various metal and non-metal materials (nylon, plastic, etc.) in sliding friction, rolling friction, rolling slip composite friction and intermittent contact friction and various conditions of wear-resisting performance test.

执行标准

功能特点

The surface material wear tester can simulate the friction and wear test under different working conditions, such as dry friction, wet friction and abrasive wear.

The friction coefficient and the friction work of the material can be measured.

Because the machine function is much, the structure is simple, reliable and easy to use, there is more than one standard test method to establish on the aircraft, and is widely used in foreign countries, so in the field of tribology research also has a very wide range of applications.


技术参数

1.Maximum test force: 2000N.

2.Measuring range of friction torque: 0 ~ 15n.m.

3 test sample axis speed: 360,180 r/min.

4 test sample axis speed: 400,200 r/min.

5. Maximum moving distance of the sample axis: plus or minus 4mm.

6. Measuring range of friction torque (four scale rulers) : 0-15n.m.

Test force indicator relative error (digital display control) : over 10% of the full range, no more than plus or minus 2%.

Test force indicator repeatability relative error: over 10% of the full range, no more than 2%.

The relative error (digital display control) of the friction torque is more than 10% of the full range, not exceeding plus or minus 2%.

10 friction torque value repeatability relative error: over 10% of the full range, no more than 2%.

11 temperature control range (digital display control) : room temperature 60 ℃

12 time control range (digital display control) : 1s-9999min.

13 revolution control range (digital control) : 1-999999.

Size of the testing machine (length x width x height) : the host is about 970 * 660 * 1100.

15 test machine net weight: about 500kg.

16 time - friction torque curve: the computer realizes the measurement and data processing of each parameter, and the time - friction torque curve can be displayed.

Record, print, and generate test results report.
