  • Bjsww-10kn Microcomputer controlled concrete tile bending test machine.

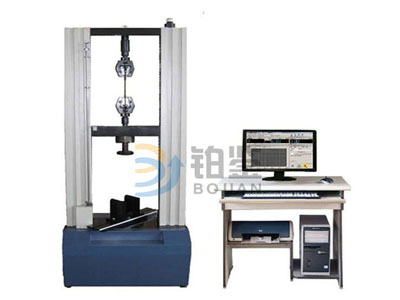

产品名称:Bjsww-10kn Microcomputer controlled concrete tile bending test machine.

产品型号:BJSWW-10KN

产品量程:

Bjsww-10kn Microcomputer controlled concrete tile bending test machine.立即咨询Bjsww-10kn Microcomputer controlled concrete tile bending test machine.在线留言

<
>

产品简介

BJSWW-10KN microcomputer controlled concrete tile bending test machine mainly tests the bearing capacity of concrete tiles, cement tiles and colored tiles. It is suitable for manufacturers and quality inspection units. The transformation fixture can also detect tensile, shear and compression tests of metallic non-metallic materials.

执行标准

JC/T746-2007 concrete tile

GB / T 16491-2008 "electronic universal testing machine"

GB/T12160-2002 "requirements for extensometer for uniaxial tests"

GB/T16825-1997 "test of tension test machine"


功能特点

技术参数

1, style: door type

2. Maximum test force: 10KN

3. Range: 1%-100%

4. The accuracy of the test force: + 1%

5. Displacement resolution: 0.01mm

6. The accuracy of displacement measurement: + 1%

7, column spacing: 380mm

8. Displacement speed control range: 1mm/min to 300mm/min adjustable.

9. The precision of the displacement speed control: + 1%

10. Test machine level: Level 1

11. The size of the test machine: about 760*520*1700 mm

12, appearance: should meet the requirements of GB/T2611

13, complete set: meet the standard requirements

14. Protection function: the tester has overload protection function.

15. Power supply: 220V, 50Hz

16. Weight: about 350KG
