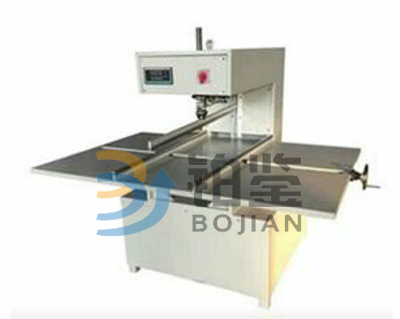

BJGZ-10KN diatomite plate bending tester is suitable for all kinds of fiberboard cement products, such as plate, fiber cement, tile, cement plate and calcium silicate board. The accessories can be used to test the tensile, compression and bending of metal and non-metallic materials such as wire rod, wire, wire, alloy wire and so on. It has the necessary functions such as curve display, inquiry and so on.
GB / T7019-2014 "test method for fiber cement products"
GB / T 16491-2008 "electronic universal testing machine".
GB/T12160-2002 "requirements for extensometer for uniaxial tests"
GB/T16825-1997 "test of tension test machine".
Product model BJGZ-10KN
Maximum test force 10000N
The accuracy of test force is 1%
Minimum test force reading 1N
Cross beam moving speed 1~500mm/min, stepless speed regulation
Displacement accuracy of + 1%
Displacement measurement stroke 600mm
Displacement speed control precision of + 1%
Test machine level 1 level
The indication error of less than deformation (50+0.15L)
Liquid crystal display content test force, displacement, peak value, running state, running speed and so on.
The weight of the host is about 350kg
The size of the test machine is about 700 x 500 x 1780 mm
The appearance should meet the requirements of GB/T2611
Compliance with standard requirements
Protection function test machine has overload protection function.
Power supply 220V, 50Hz
